Hotel（Cooling Only）

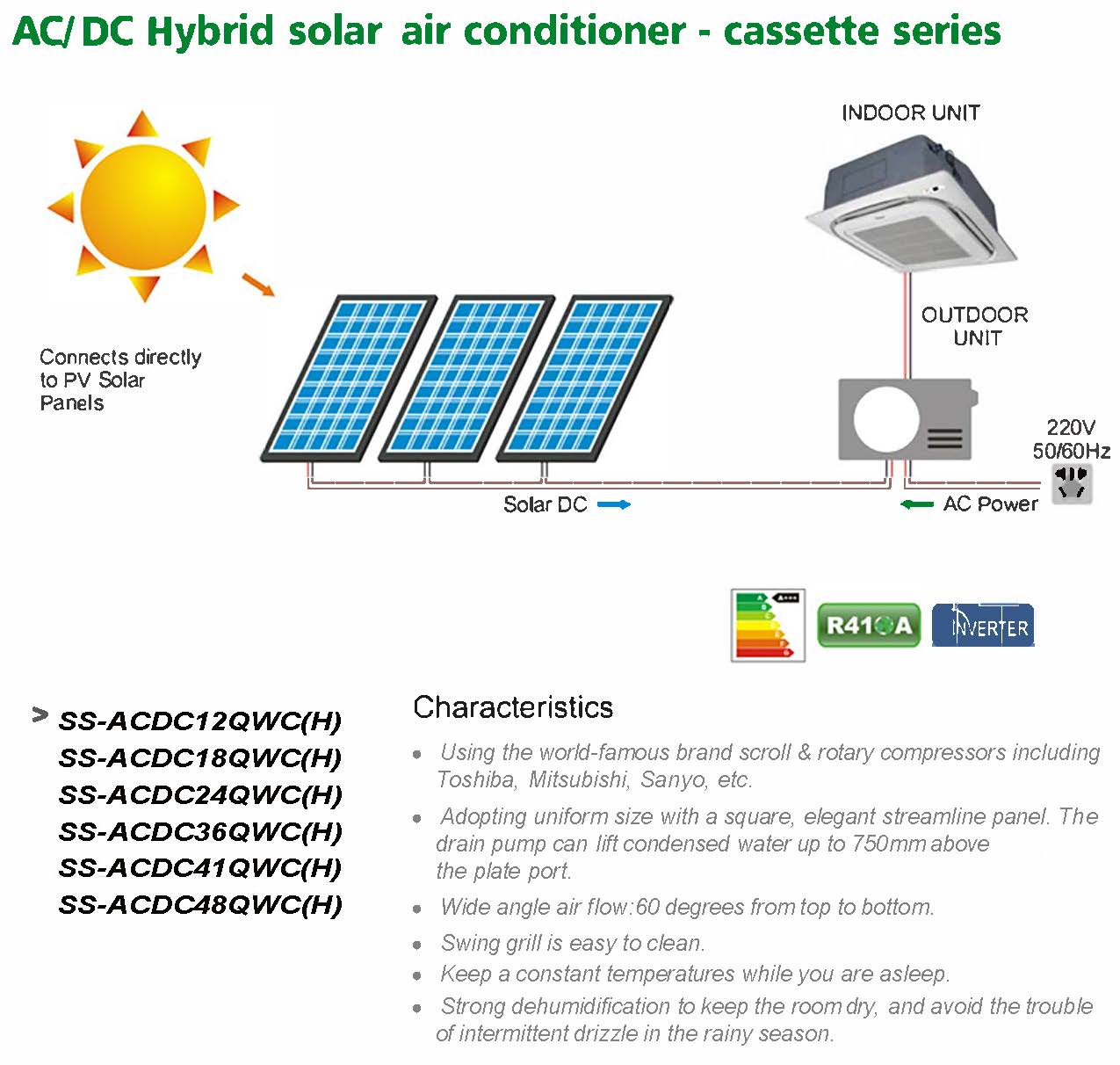

The ACDC on grid solar air conditioner system works with grid and solar energy both, it saves maximum about 95% electricity during daytime, at night the air conditioner works with grid electricity only but spending very little money because our air conditioner is high efficiency, this system is suitable for daytime use, example, office, school, factory, etc.
Wild range for option : 9000BTU / 12000BTU / 18000BTU / 24000BTU
Power : New technology AC/DC dual power supply
High energy efficiency : Maximum up to SEER36, even if there is no sunshine –up to SEER 20, Using solar DC power priority , maximum utilization rate more than 90%
DC power : max 1500W from solar PV panel
Auto interaction : solar power / city grid power automatically switch

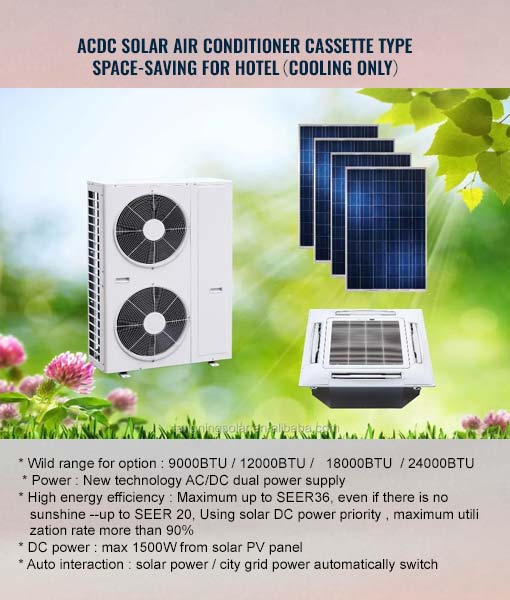

ACDC Solar Air Conditioner Cassette Type Space-saving For
| Specification of Cassette Type | |||||
| Model | SS-ACDC12(Q) | SS-ACDC18(Q) | SS-ACDC24(Q) | ||
| Power supply | AC | Ph-V-Hz | 1Ph, 220-240V～, 50/60Hz | 1Ph, 220-240V～, 50/60Hz | 1Ph, 220-240V～, 50/60Hz |
| DC | V | 50-380V | 50-380V | 50-380V | |
| Cooling | Capacity | Btu/h | 12000(3700-14000) | 18000(6200~20900) | 24000（9100-26900） |
| Input | W | 100-1580 | 140~2360 | 240-3030 | |
| Rated current | A | 0.4-6.9 | 0.6~10.3 | 1.0-13.2 | |
| Heating | Capacity | Btu/h | 13000(3000-14400) | 19000(4700~23000) | 25000（5500-30000） |
| Input | W | 130-1510 | 200~2410 | 260-3140 | |
| Rated current | A | 0.6-6.6 | 0.9~10.5 | 1.1-13.7 | |
| Indoor air flow (Hi/Mi/Lo) | m3/h | 750/550/450 | 800/600/500 | 850/650/500 | |
| Indoor noise level (Hi/Mi/Lo) | dB(A) | ≤40/36/33 | ≤40/36/33 | ≤40/36/33 | |
| Indoor unit | Dimension(W*D*H) | mm | 650*650*45 | 650*650*45 | 950*950*45 |
| Packing (W*D*H) | mm | 705*705*310 | 705*705*310 | 1005*1005*100 | |
| Dimension(W*D*H) | mm | 570*570*225 | 570*570*225 | 822*822*250 | |
| Packing (W*D*H) | mm | 745*745*100 | 745*745*100 | 875*875*305 | |
| Net/Gross weight | Kg | 23/28 | 23/38 | 40/48 | |
| Outdoor air flow | m3/h | 1800 | 2000 | 2400 | |
| Outdoor noise level | dB(A) | ＜50 | ＜54 | ≤56 | |
| Outdoor unit | Dimension(W*D*H) | mm | 835*320*540 | 910*340*700 | 910*340*700 |
| Packing(W*D*H) | mm | 900*400*600 | 1035*375*755 | 1035*375*755 | |
| Net/Gross weight | Kg | 33/38 | 35/40 | 45/51 | |
| Operation temp | ℃ | 17～32/0～30 | 17～32/0～30 | 17～32/0～30 | |
| Ambient temp (cooling/heating) | ℃ | 17～52/-15～30 | 17～52/-15～30 | 17～52/-15～30 | |
| Application area | m2 | 15-25 | 25-35 | 35-45 | |
